Chuhatsu

Coating

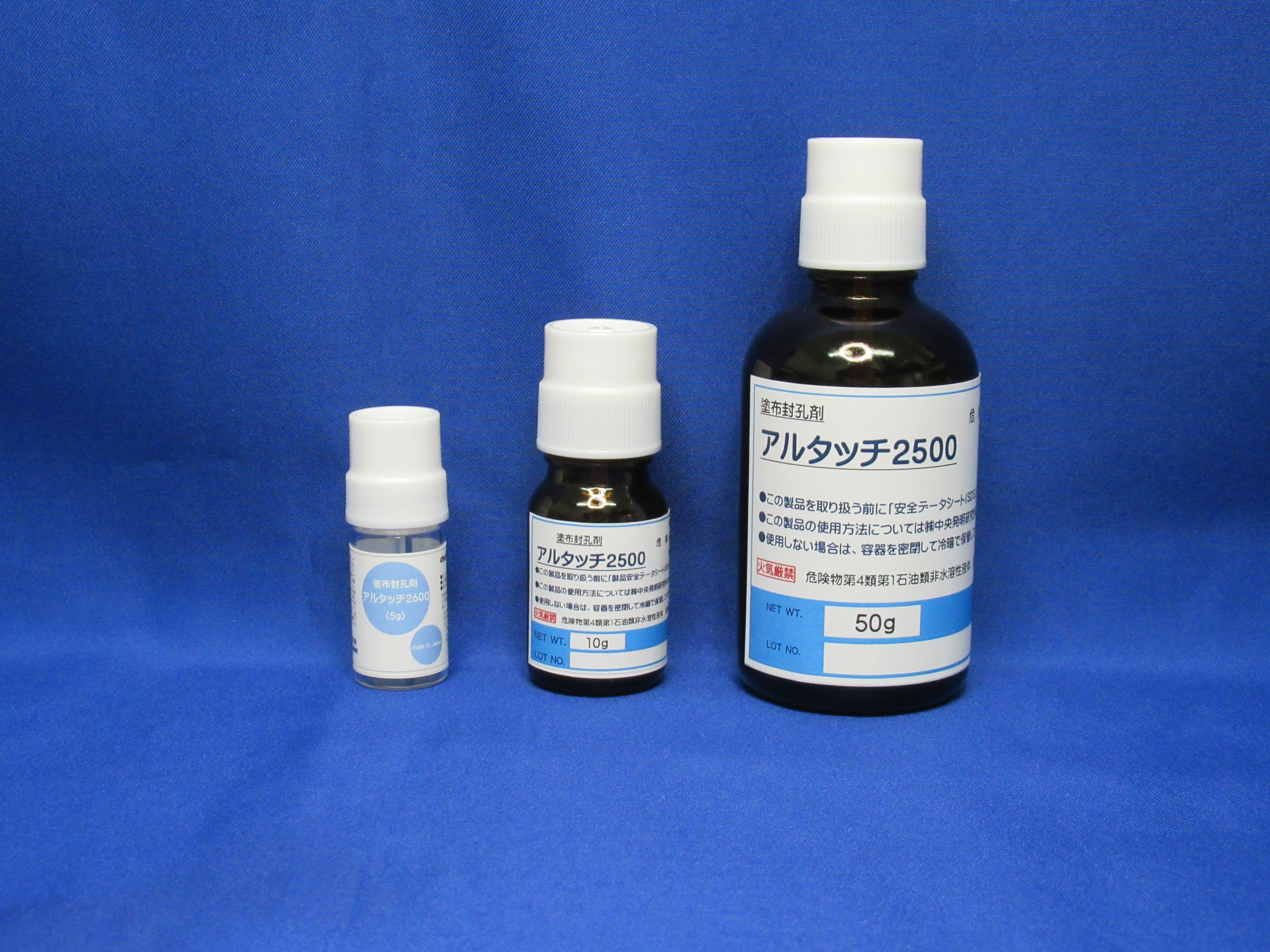

ALTOUCH 2500 / 2600

Moisture-curing silicone coating designed to seal microporosities in high-pressure components

Market

  • Mobility
  • Motor
  • Infrastructure
  • Pneumatic/
    Hydraulic
  • Powder shaped material
Purpose
  • Sealing high pressure parts (compressor parts, etc.)
  • Preventing blistering before painting
Feature

A low-viscosity, moisture-curing silicone encapsulant that rapidly penetrates fine pores. It reacts with atmospheric moisture to form a fully cured, pressure-resistant coating. Application is simple using the brush included in the container.

  1. Strong adhesion to metal surfaces, suitable for high-pressure components
  2. Forms a clear, transparent coating after curing
  3. Outstanding chemical and heat resistance
  4. Low-viscosity formulation enables deep penetration into microporosities
Product name ALTOUCH 2500 ALTOUCH 2600
Main component Modified silicone resin
Appearance Colorless transparent liquid
Active ingredient 100%
Density(25℃) 0.98~1.02 g/cm3
Viscosity(25℃) 1~4 mPa・s
Dry time to touch 15~20 minute
Curing time 60 minute (Full curing : 24hour)
Storage method Avoid direct sunlight, keep container tightly closed and store in a cool and dark place.
Packing style Brown bottle 50g or 10g Transparent screw tube 5g

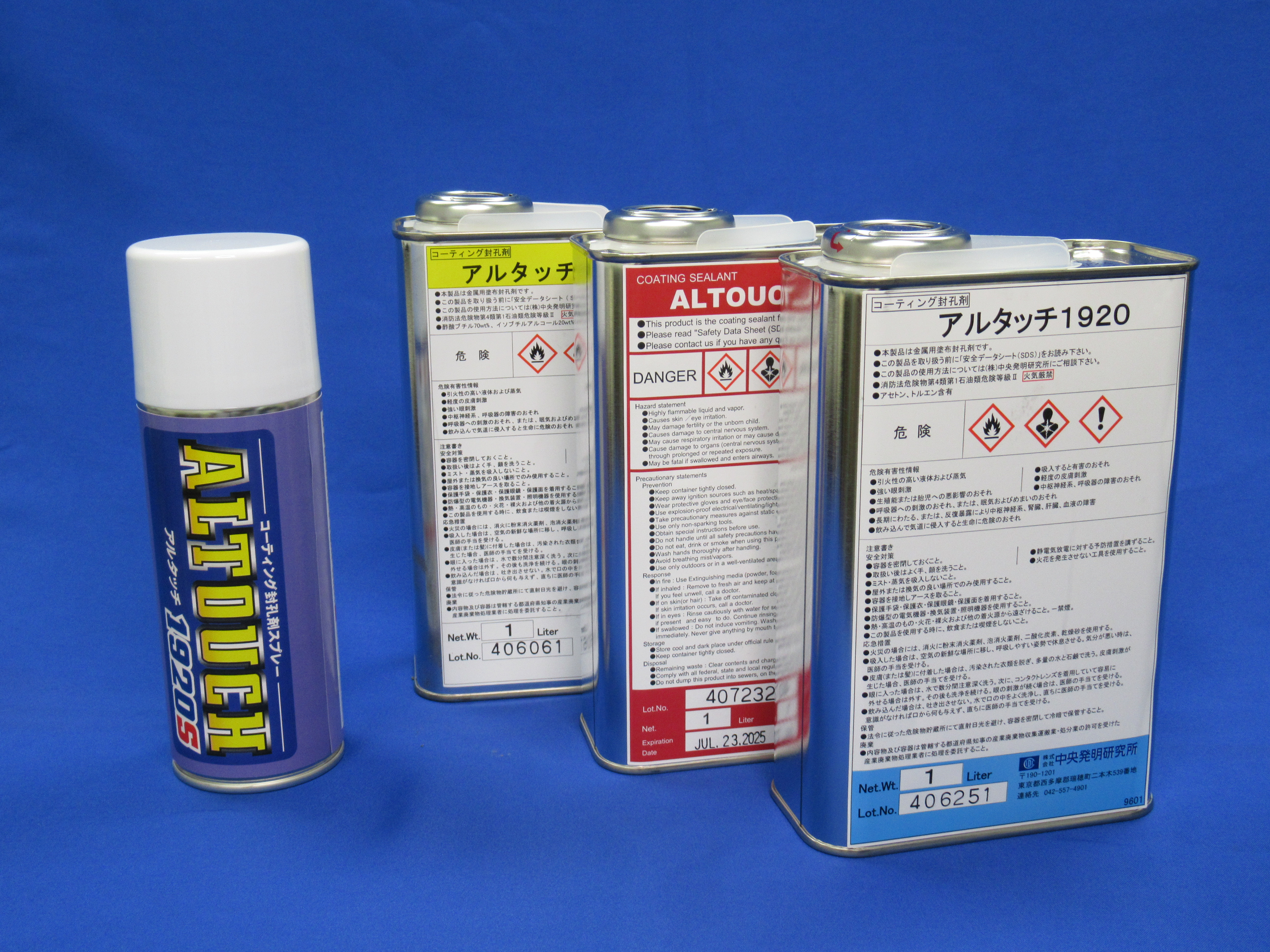

ALTOUCH 1900 series

Quick-drying, low-viscosity coating agent for sealing porosities in low-pressure components

Market

  • Mobility
  • Motor
  • Infrastructure
  • Pneumatic/
    Hydraulic
  • Powder shaped material
Purpose
  • Seal porosities
  • Give pressure resistance
  • Corrosion/Dustproof
Feature

A fast-drying sealant that can be applied by brushing, spraying, or dipping. Its low viscosity ensures excellent permeability, enabling effective pore sealing and pressure resistance. Rapid surface drying allows smooth transition to subsequent processes.

  1. Suitable for sealing wide areas without the need to target specific locations
  2. Cures to form a clear, transparent protective coating
  3. Low-viscosity formulation ensures smooth penetration into micropores
  4. Spray type available for easy and efficient application
  5. Excellent adhesion to a wide range of metal materials
  6. Provides additional protection such as corrosion resistance, moisture resistance, dustproofing, and electrical insulation
Product name ALTOUCH 1920 ALTOUCH 1920S ALTOUCH 1920L ALTOUCH 1930 ALTOUCH 1937 ALTOUCH 1935
Component Modified acrylic polymer Vinyl chloride/
Vinyl acetate/Acrylic polymer
Solvent Acetone/Toluene Toluene Acetone/Toluene Acetone/Toluene Butyl acetate/2-butanol Acetone/Etyle acetate/2-butanone
Appearance Colorless transparent liquid
Active ingredient 12% 14% 5% 12% 10% 12%
Viscosity(25℃) 1~3 mPa・s 1~3 mPa・s 1~3 mPa・s 1~3 mPa・s 3~5 mPa・s 3~5 mPa・s
Dry time to touch 3~5 minute 6~11 minute 3~5 minute 3~5 minute 2~3 minute 1~3 minute
Curing time 5 hour 1~2 hour
PRTR method Applicable Not applicable
Halogen No contains Contains
Storage method Avoid direct sunlight, keep container tightly closed and store in a cool and dark place
Packing style 1L can 300mL spray can 1L can 1L can 1L can 1L can
